Name:Binder-packing machine and sealing machine
Number:Pro2011623161742
Related Products:Hydraulic pressure cutting machine
Label:Binder-packing machine and sealing machine
Company:WUXI QUNXING CHEMICAL EQUIMENT CO.,LTD.
Time:2011/6/23 16:19:24

Filling capacity 100 - 500ml
Specification Φ35-60mm diameter aluminum pipe length 150-260mm
External pressure feeder feed
Dimensions (mm) 600 * 400 * 1200 user with a compressor 0.7Mpa, 0.4Mpa Gas Consumption
Weight (kg) 100 千克 Input voltage: 220V 50HZ
Production capacity :20-30 / min
Structural characteristics of the machine by switching time control close to filling measure, a total of 2 person operation, one on tube filling, cover and hit another plug cap, entered the back packing procedure. Measurement error of ± 1.5%.
Facilities with a rubber hose with quick connector.

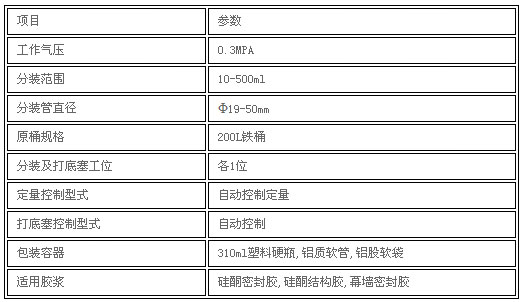

Technical parameters
