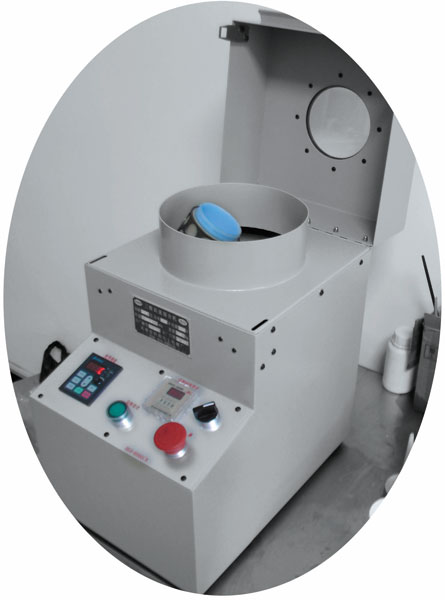

KSH-100 Three-dimensional high-speed mixer

1-Use：

Three-dimensional high-speed mixer is the rapid test equipment ，use for mixed the materials such as paste and paste ，paste and powder ，powder and powder . etc （such as silicone, polyurethane, acrylic resin, polysulfide and epoxy resins, etc.），also can use for Coatings, paints, pigments，、liquid or paste one or more components of the mixture of products.

2-The principle and structure：

The electrical and working platforms of high-speed mixer all covered in a sturdy metal housings  ，The interior is a high-power motor drive the three-dimensional rotating head  high-speed rotation ，Centrifugal force make materials and materials Impact each other ，Form a uniform mixture ；Mixing container is clear plastic cup ，the cup weight is 30g，inside size is Ф62×55mm，capacity is 0.5L，materials feeding range 40～110g.

3-Operation ，just according the formula put the materials in the plastic cup. Stirring time about 15 seconds each ，usually make a new formula only need 2-3 minutes。The plastic cup can be repeated use.

4．Size (mm)：285×445×480。

5．Power ：Two-phase AC，220V，50Hz。

6．Total power：370W
