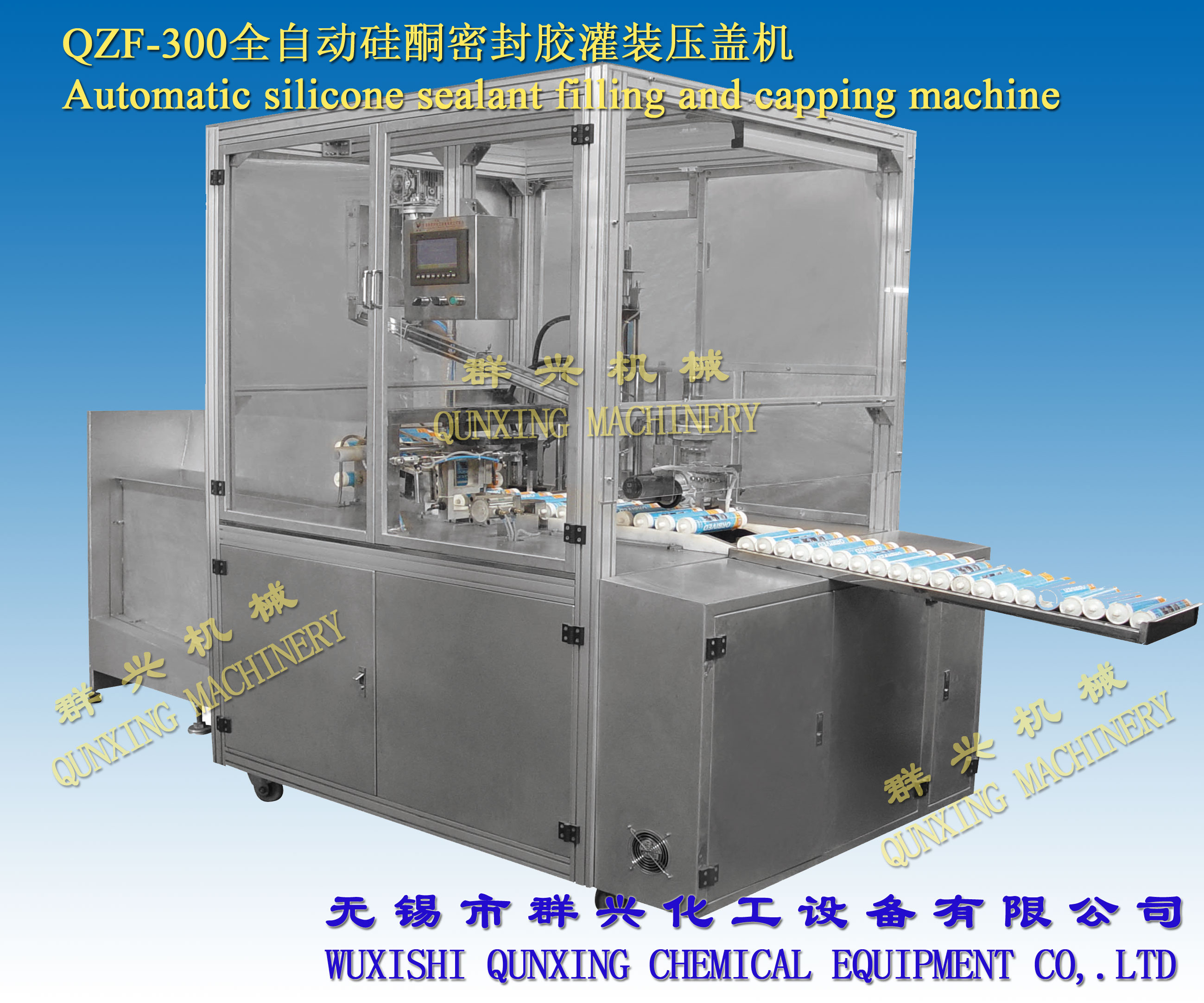

QZF-300 Automatic filling and capping machine for silicon sealant

1.Use and features：

  It can be used in racking and hitting of viscose material filled in plastic bottle. The device feed lids automatically by glue-feeding bottle, quantitative vats are used, lids are fixed automatically, code spurting connecting device is used, and there are counters on the interface, moreover, venting function is possessed. It have advantages in precise measurement, high degree in automation, reducing staff and lightening labor intensity；through several design and improvement, merits such as user-friendly, easy operation, and high stability have been achieved. It can be used with discharging machine(＞20tons) of hydraulic pressure type. This kind of device is mainly used in cementing compound industry, such as silicone sealant, glass cement, acrylic acid glue, polysulfide sealant, polyurethone sealant and so on.

Technical parameters of QZF-300 Automatic Sealant filling and capping machine

2. Configuration.：

Quantitative subpackaging machine of sealing glue, one set (including electric cabinet and automatic line);

Hydraulic workstation, one set; Conveyor of bottom head-feeding, one set；Heaving conveyor of bottom head-feeding, one set

3. Technical parameters：

3.1 Working voltage:50Hz 380V.
3.2 Working pressure: 0.7Mpa (provided by demanders).

3.3 Power of hydraulic motor: 2.5-5.5Kw.

3.4 Packing vessel: ф40-ф50mm，glue bottle with length 150--230mm; note: the device can be changed according to customer’s requirement.

3.5 Metering range: 100-500ml.
3.6 Precision: ±0.5％.
3.7 Production capacity: 25～45pcs/min.
